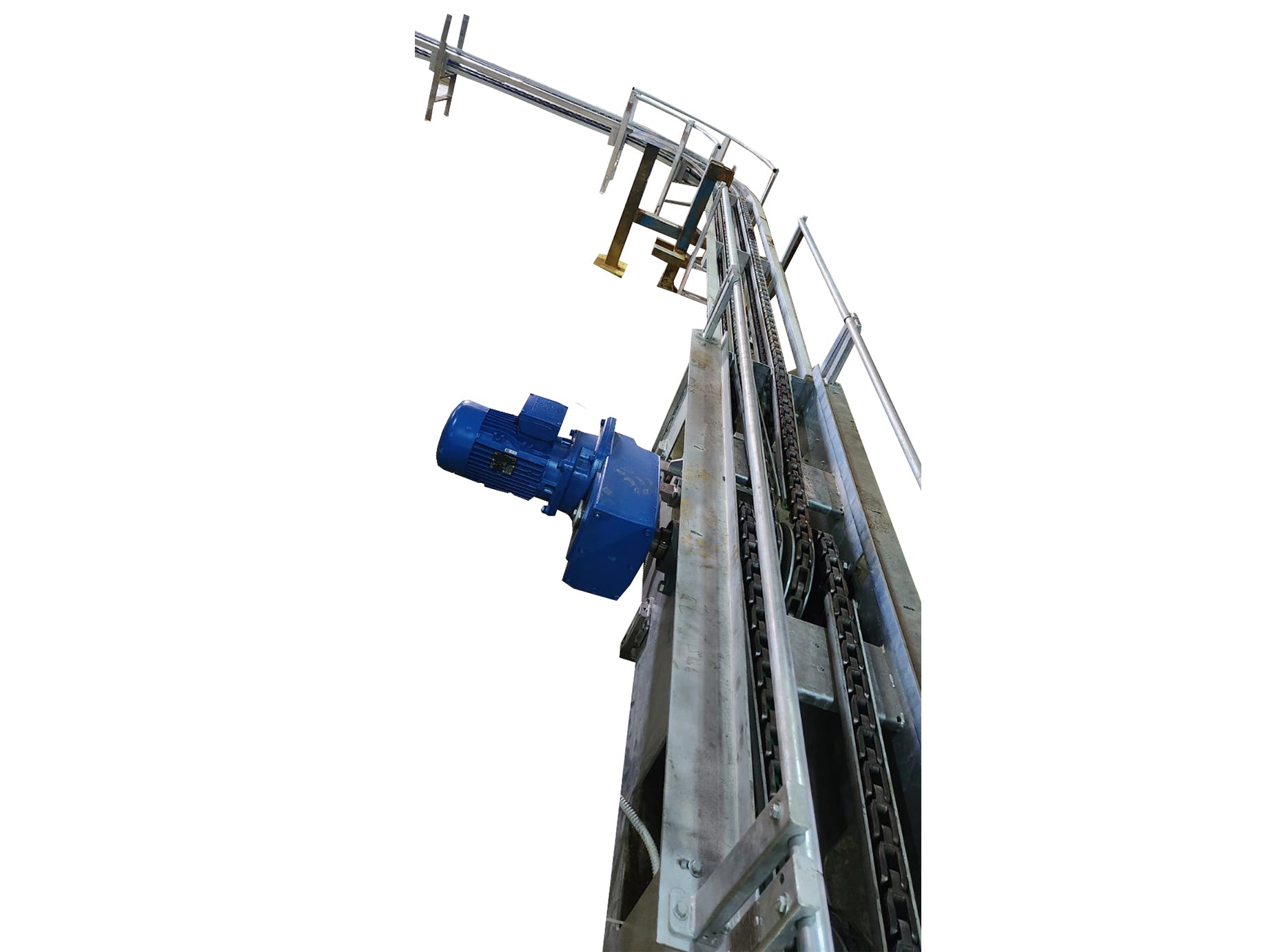

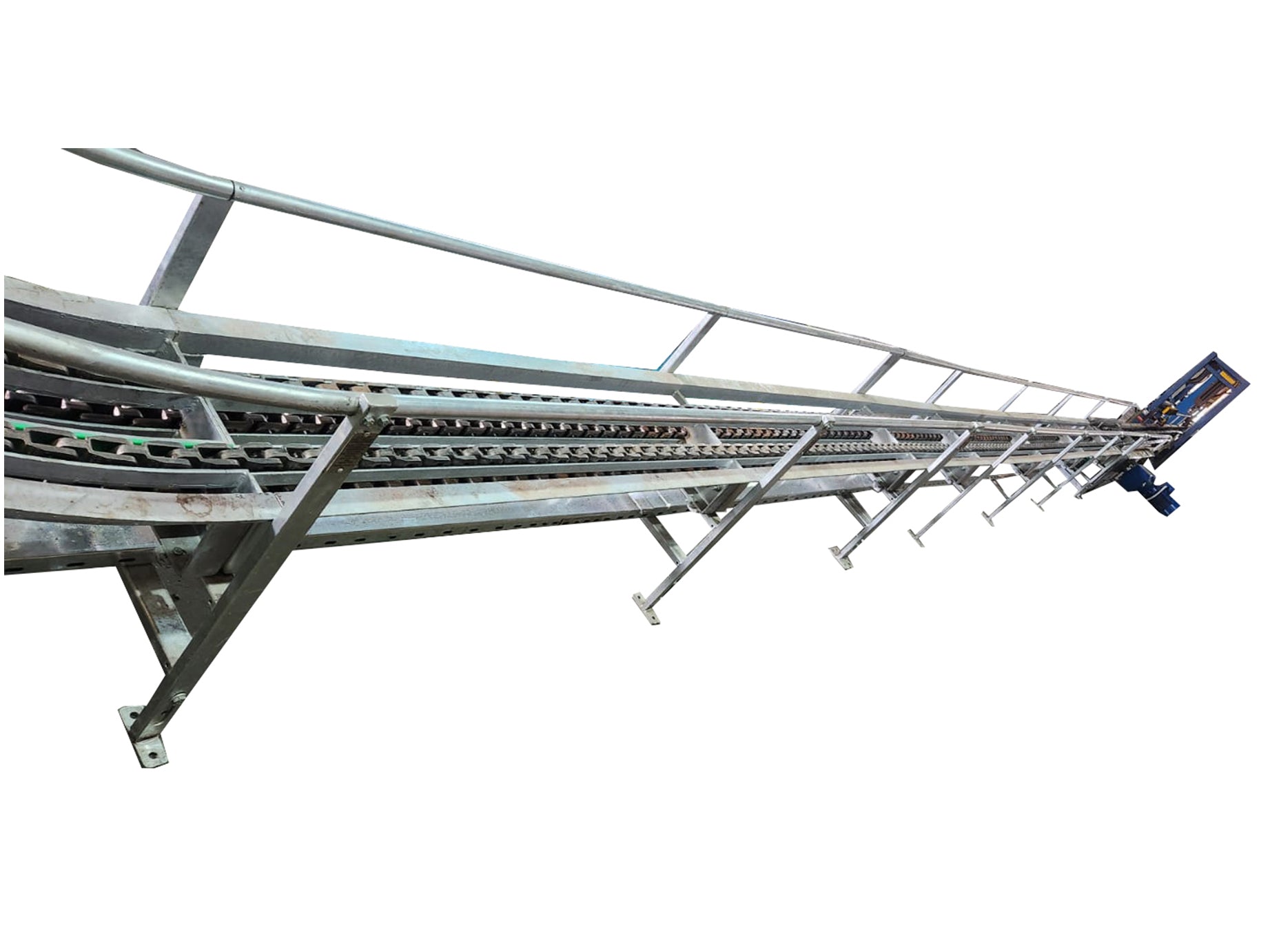

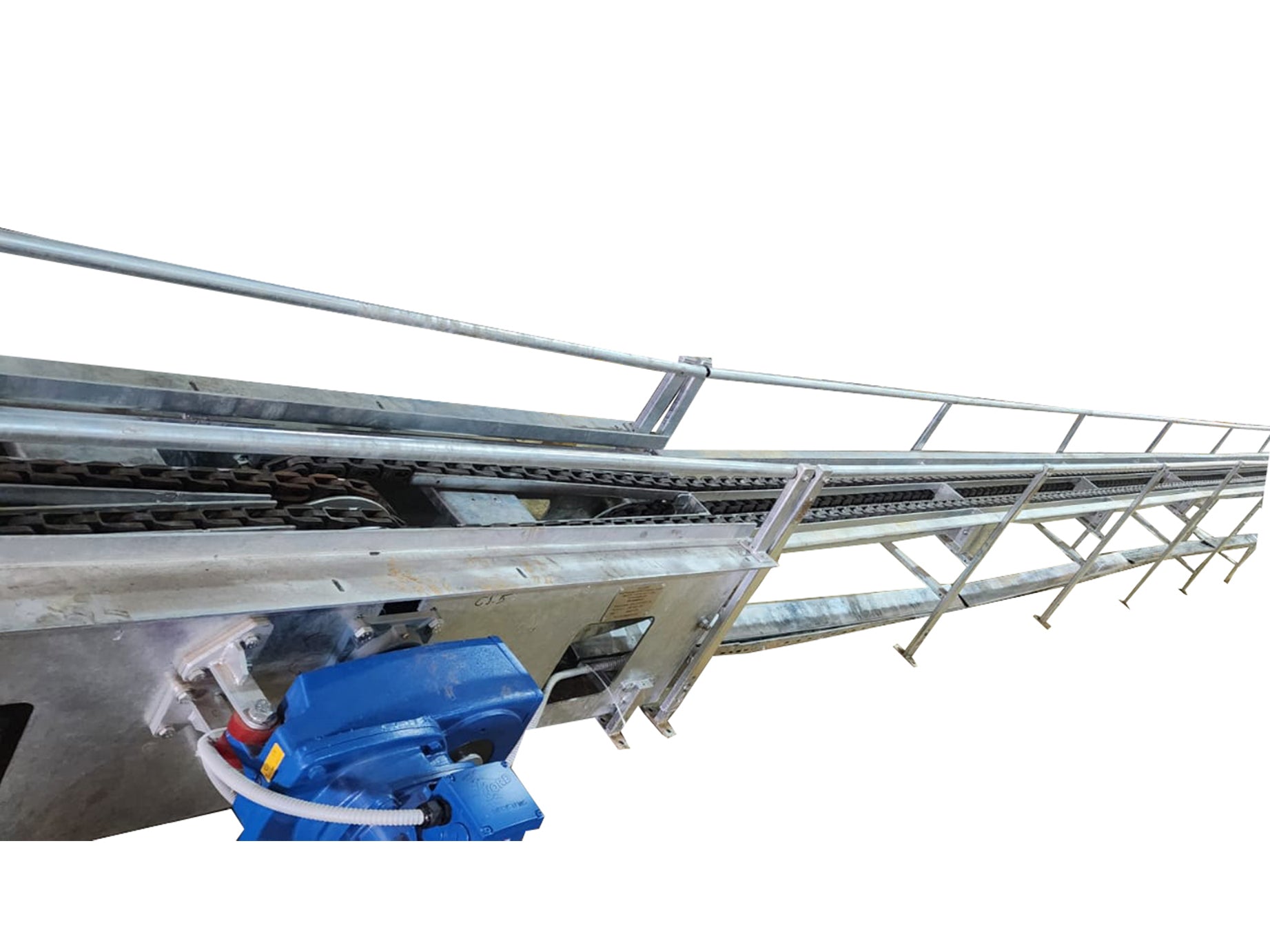

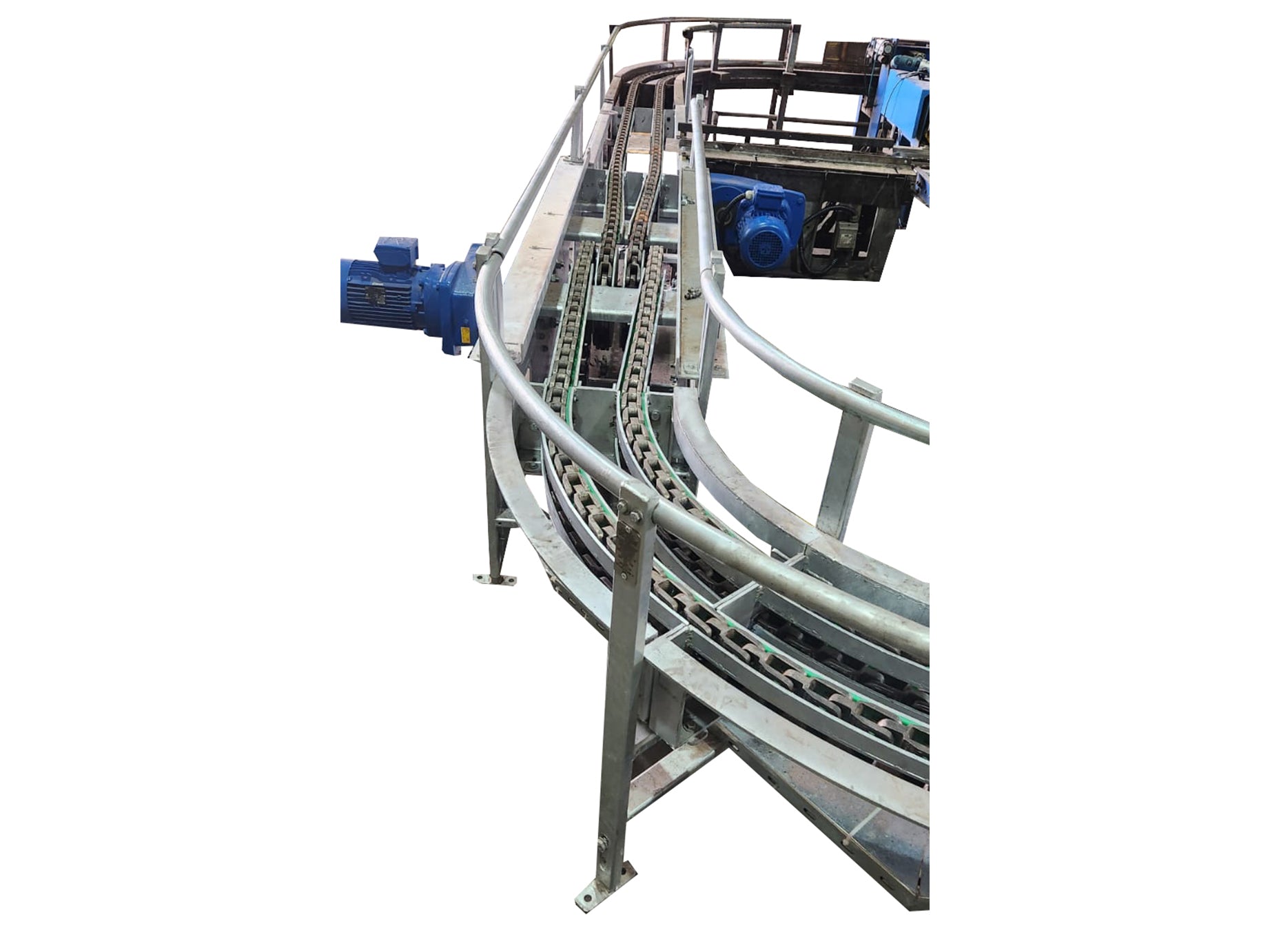

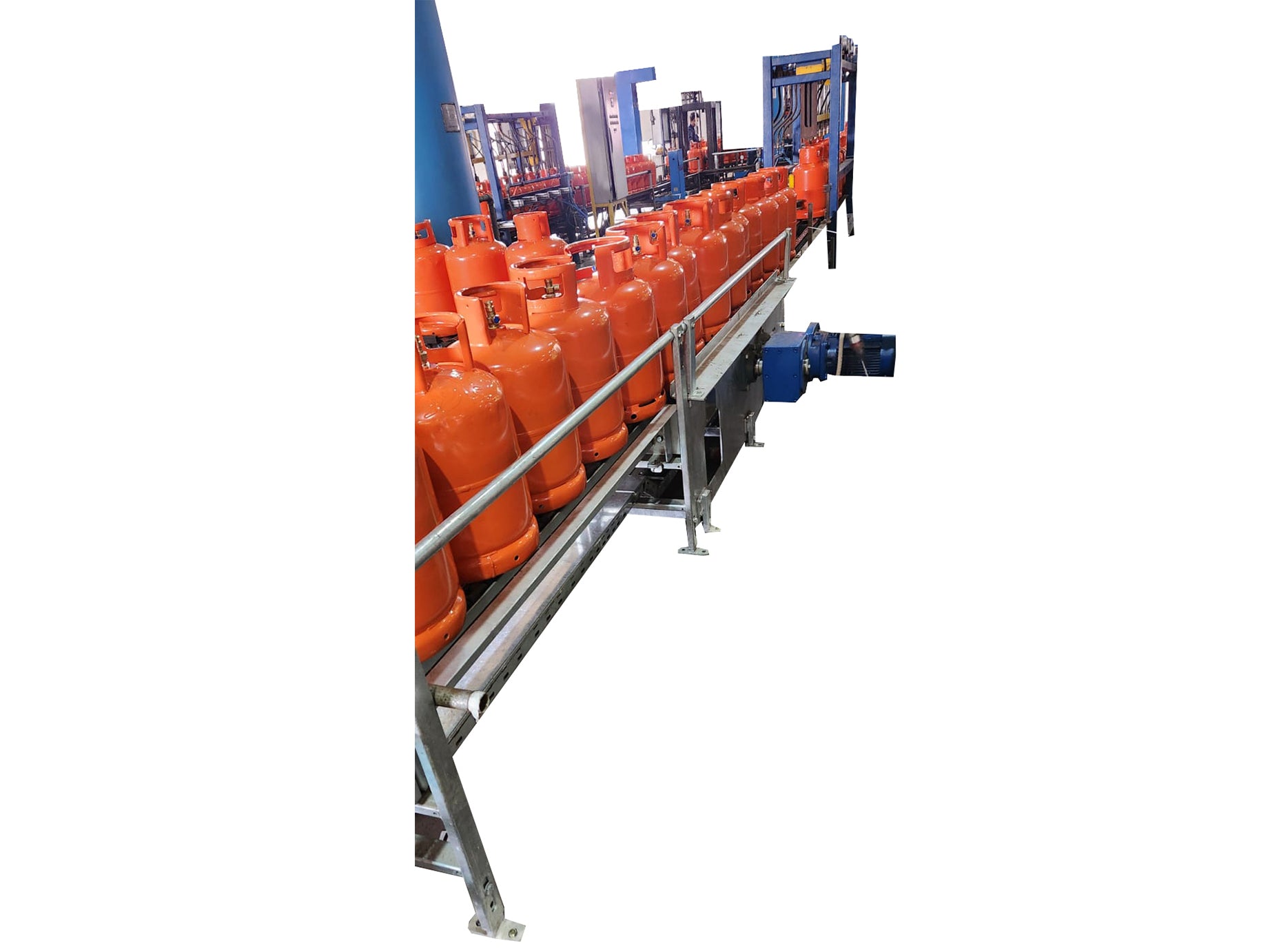

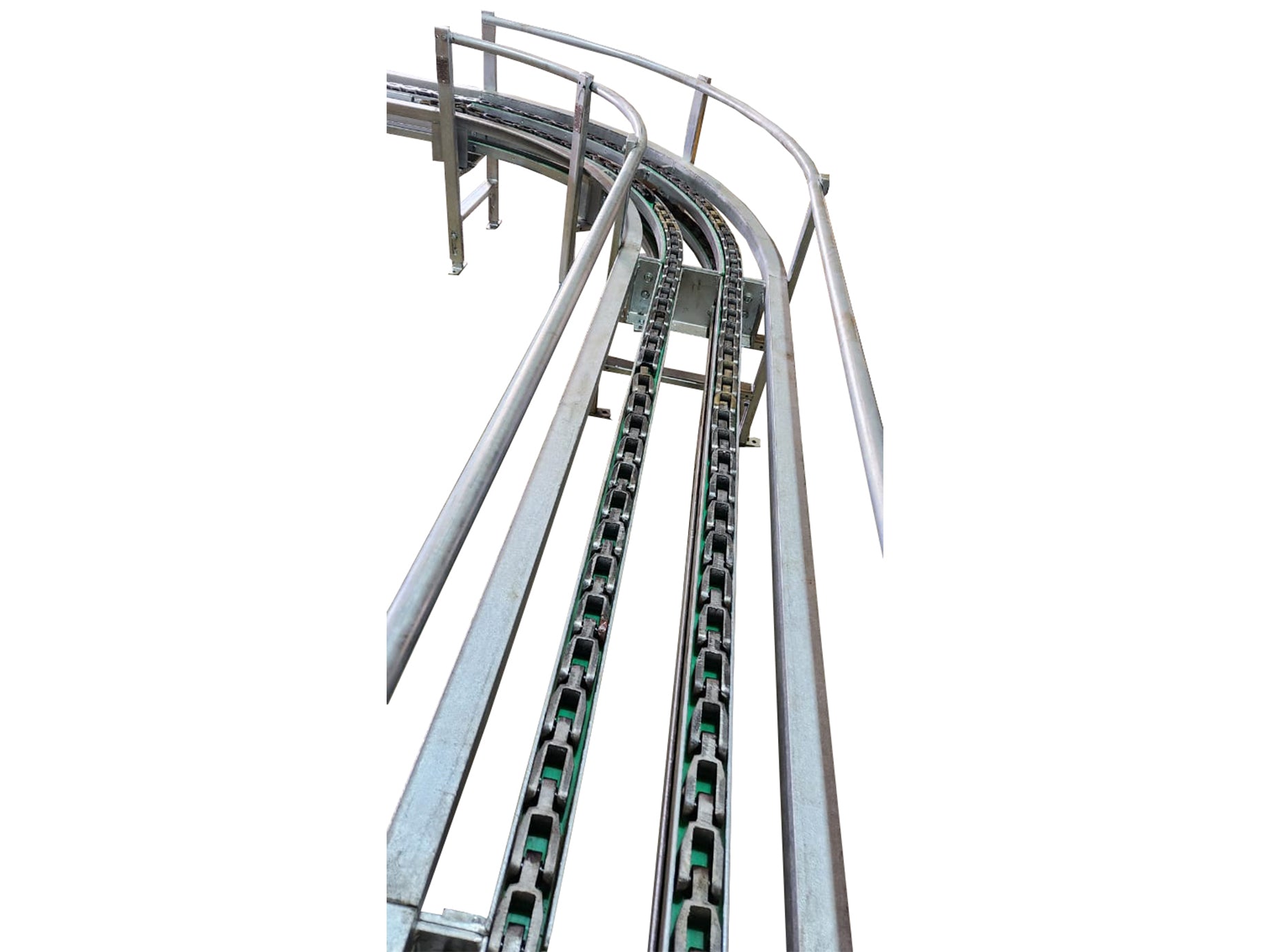

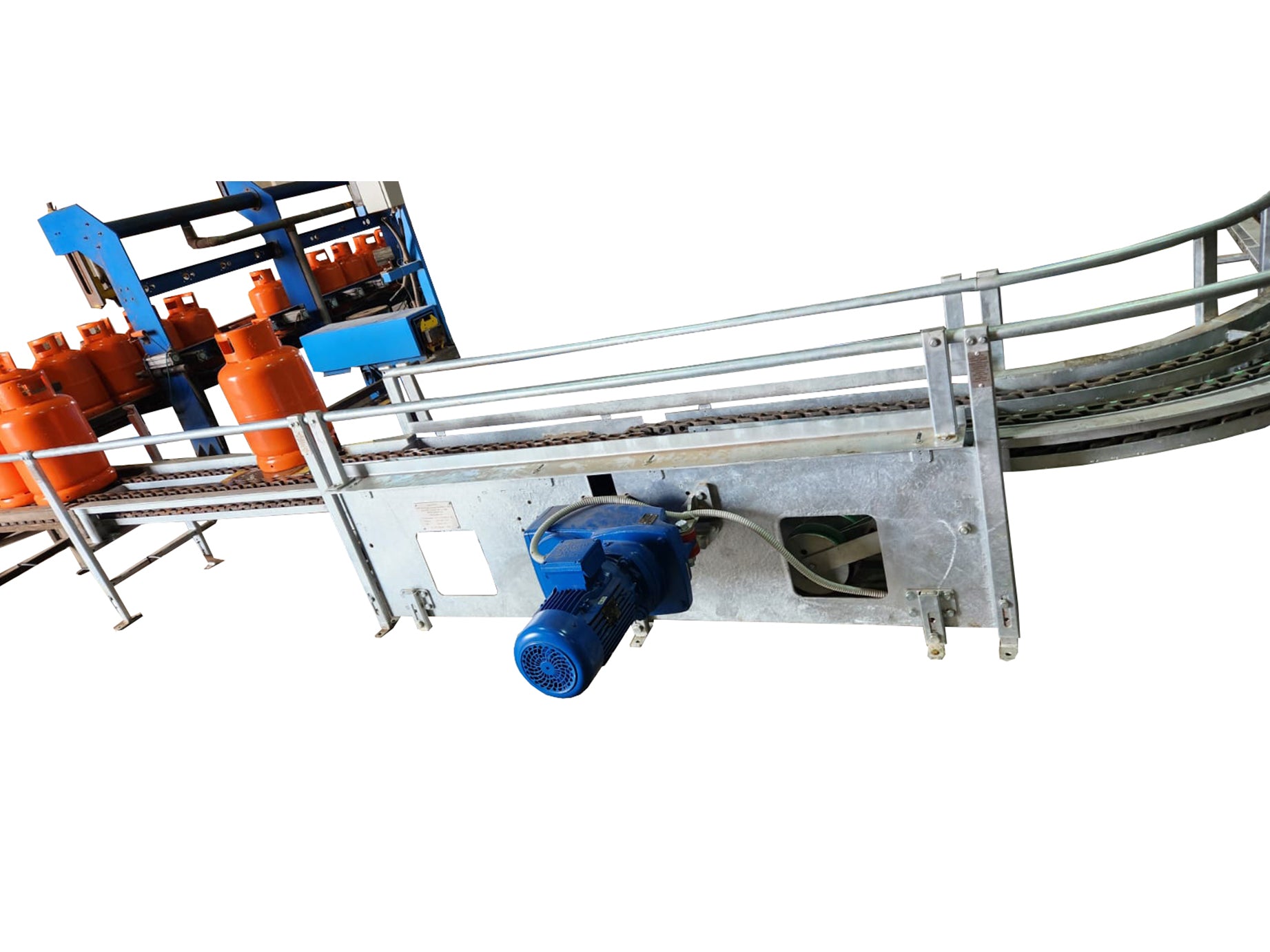

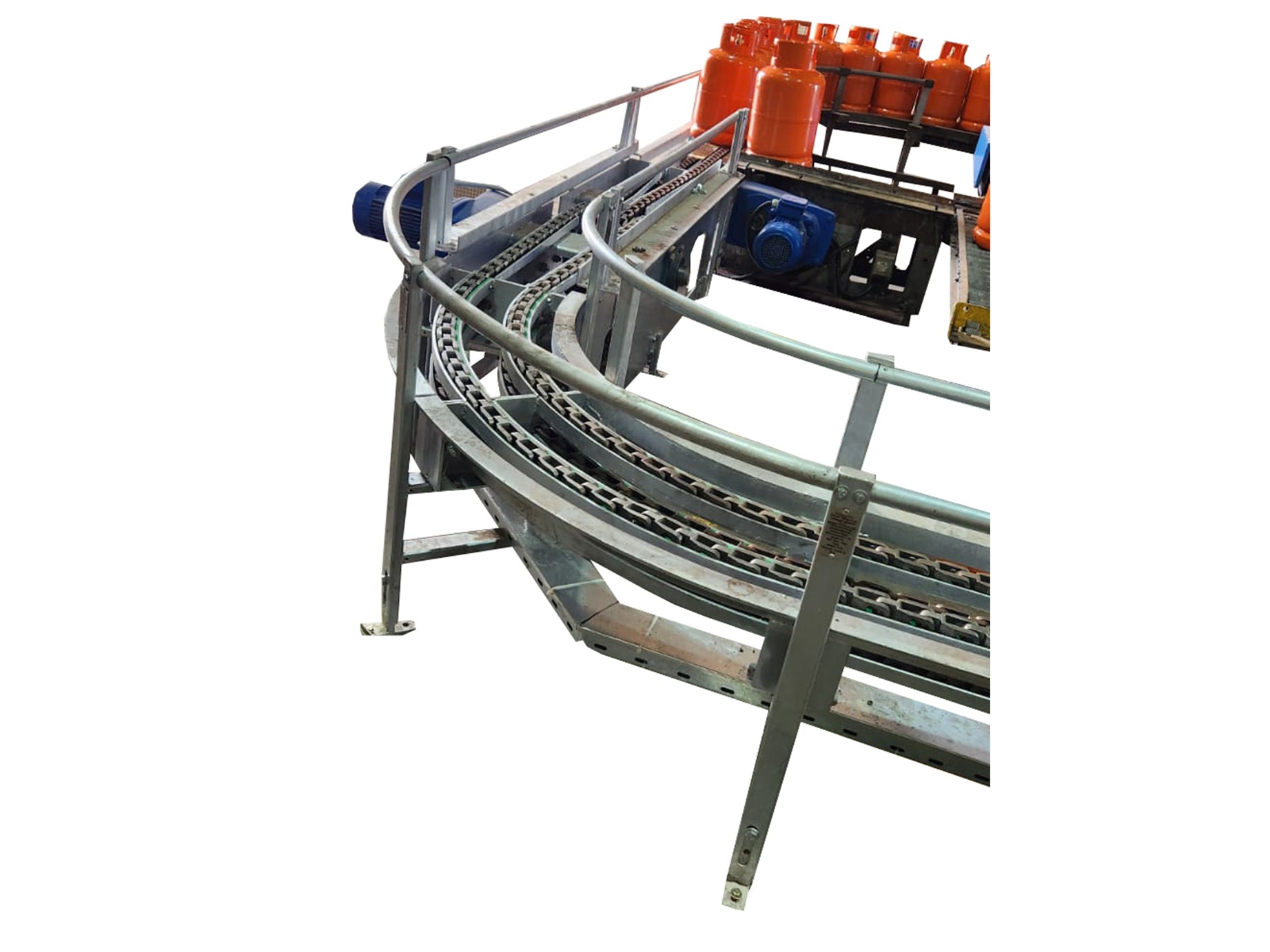

LPG Cylinder Chain Conveyor
A robust and reliable conveyor system designed specifically for the safe handling and transport of LPG cylinders. Built with a heavy-duty chain mechanism, this conveyor ensures smooth movement, precise positioning, and long service life in demanding gas plant environments. It is ideal for integration with filling stations, inspection lines, and storage facilities, while maintaining the highest safety standards required in the gas industry.
Applications:
- LPG cylinder filling plants
- Zones 1,2,3
- Wet or dry lines
- Cylinder testing and inspection lines
- Gas distribution centers
- Warehousing and storage facilities
- Conveyor integration with automated filling and weighing systems
STRUCTURE :
|
Chain Material |
Steel – IECEx certified |
|
Frame |
Steel hot dip galvanized – Steel powder coated paint |
|
Load |
Up to 150KG/meter |
|
Spead |
Up to 20 meter/min |
|
Dimensions |
All sizes are available upon request |
|
Accessories |
Several separate add-ons and accessories such as sensors with stopper |
SPECIAL CHARACTERISTICS :
- Designed for safe and efficient LPG cylinder handling
- Heavy-duty chain ensures reliability in continuous operations
- Compatible with filling, capping, weighing, and testing equipment
- Equipped with European brand electric motor and control panel
- Can be offered with a explosion proof control panel
- Fully customized to meet plant requirements and safety regulations
Made In KSA
