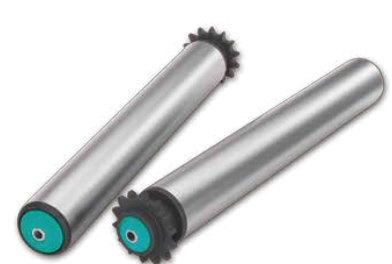

Stainless Steel Driven Roller W600mm
FEATURES
- Polymer Single Sprocket
- Abrasion Resistance
- Self-lubricating
- Internal Thread

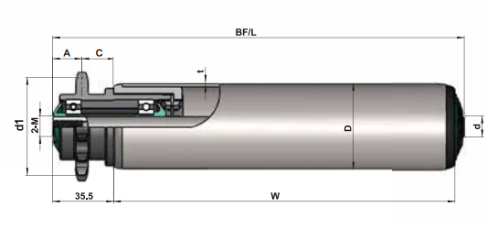

STRUCTURE :
| W (mm) | 600 |
| D (mm) | 50 |
| T (mm) | 1.5 |
| A(mm) | 17 |
| C (mm) | 18.5 |
| BF/L (mm) | 641 |
| D1(mm) | 57.07 |
| D(mm) | 15 |
| Max weight (Kg) | 30 |
| Temperature range ℃ | -5 To 40 |
